10U 24-inch Deep rSeries Shock Rack
10U 24-inch Deep rSeries Shock Rack
Overview
24" 3SKB Roto Shock Racks feature a standard depth of 24" from front to rear rail, with lid depths of 4.5" per lid.

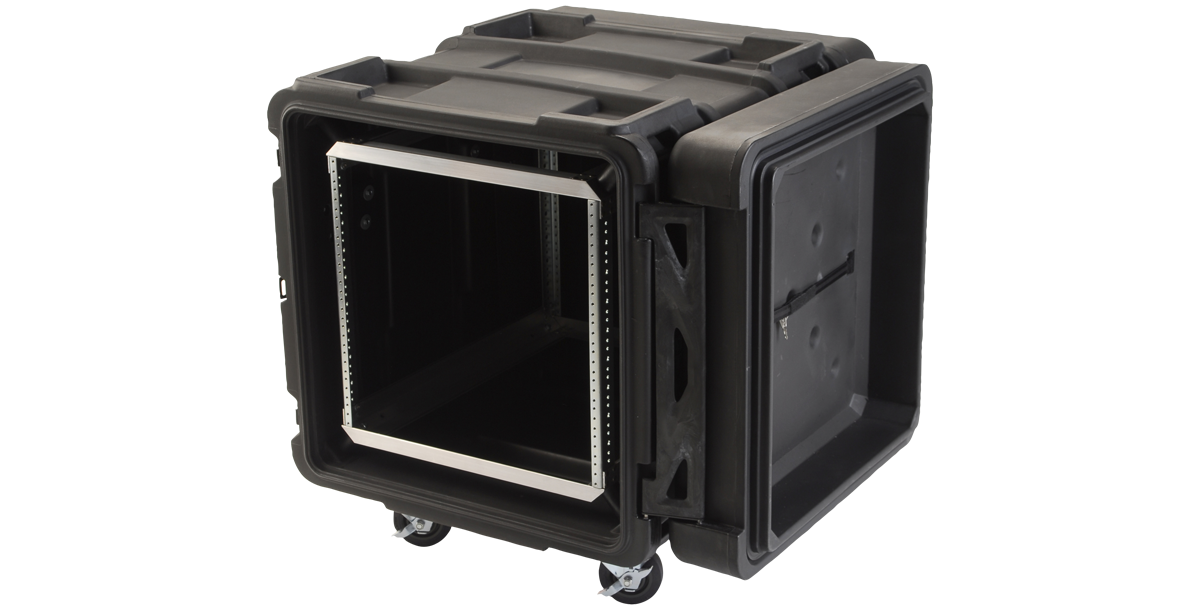

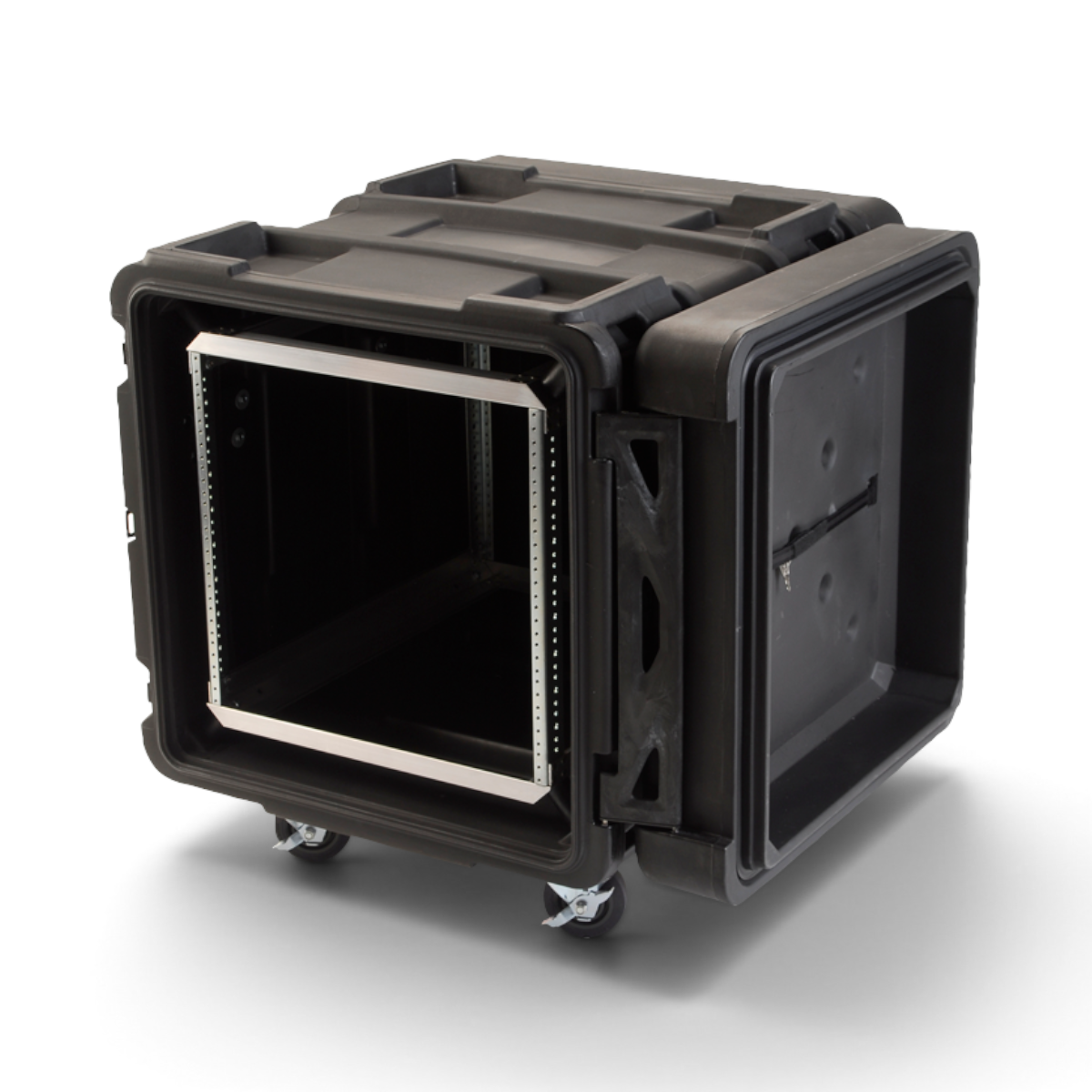

All 3SKB Series Roto Shock Racks feature a compound hinge system that allows the lid to swing out and completely around to lie flat against the main body of the case. This also enables effortless removal/reinstallation of the lid with a simple lift motion.

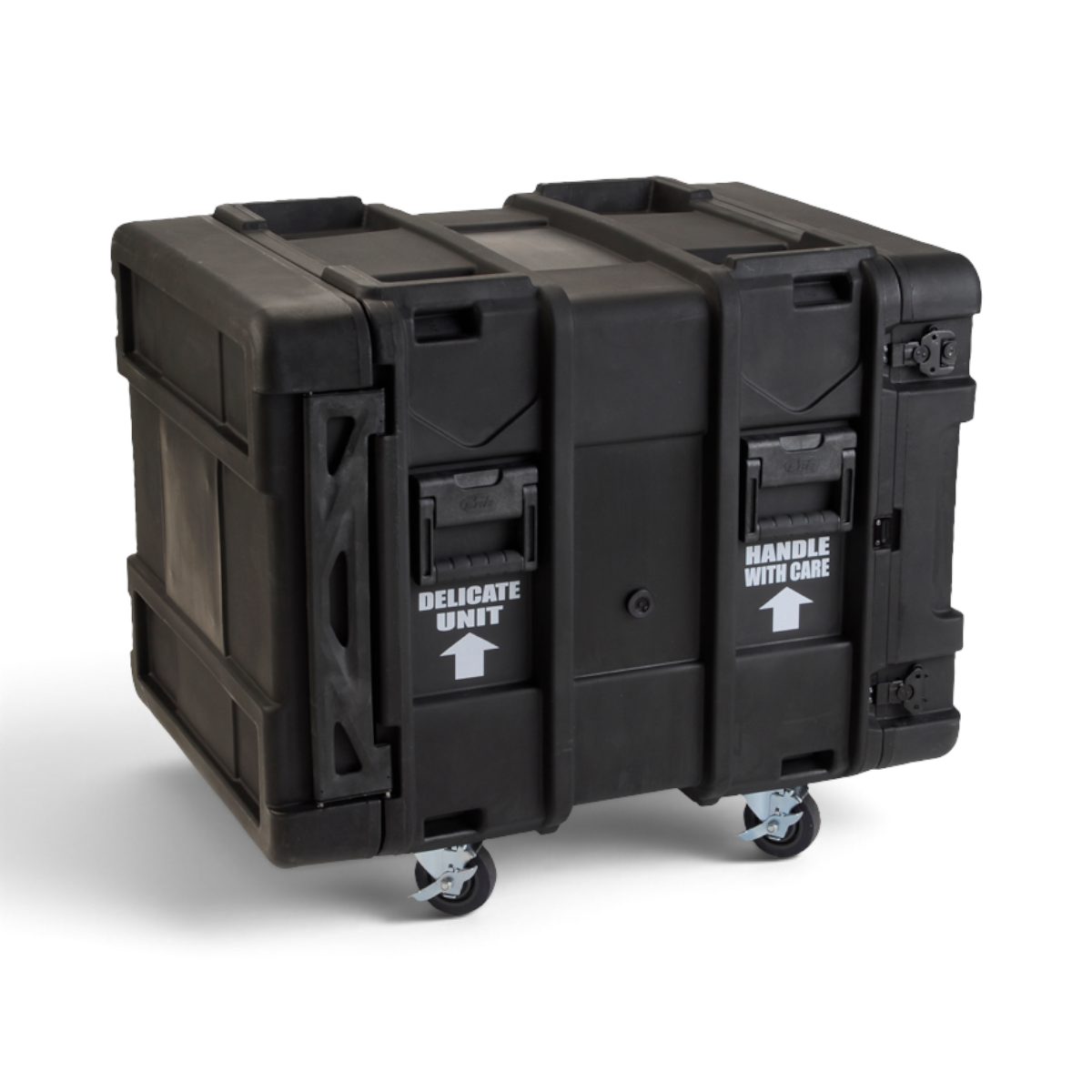

Both front and rear lids are designed to protrude into the base of the case approximately 1" with a unique double wall structure that makes them incredibly rigid where this intersection occurs, providing MIL-SPEC sealing characteristics with significantly fewer latches than most competitive cases. This revolutionary design allows for rapid deployment in an up-right configuration, even when stacked -- 3SKB Roto Shock Racks are the only shock racks in the marketplace today that will open front and back while stacked.

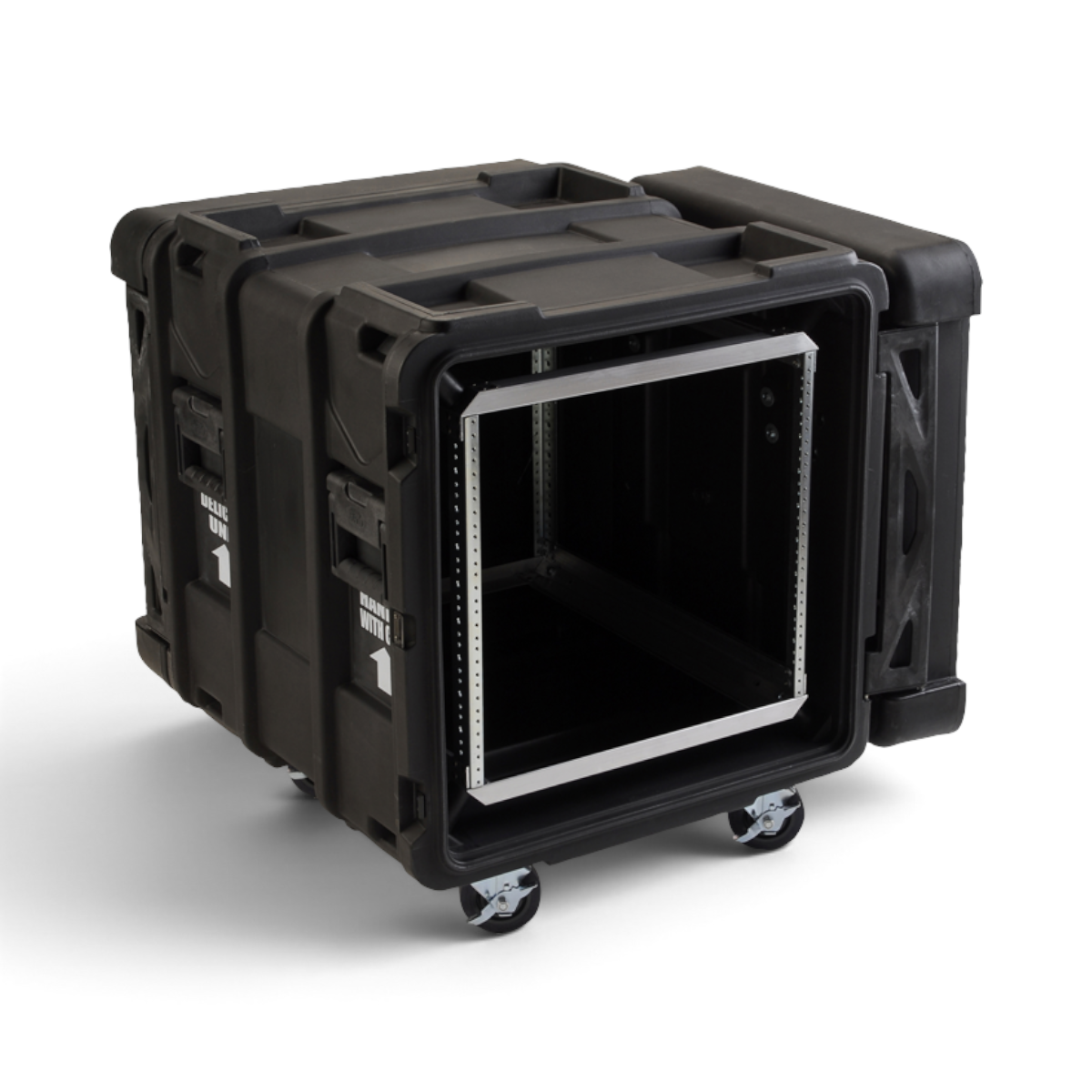

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to EIA-310 standards, creating an H-shaped frame that provides maximum strength. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 - 150 pounds in a standard configuration, and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre-threaded for standard 10-32 hardware and mounting screws are included.
Other standard features include an automatic ambient pressure relief valve and removable 4" casters.
Features
Specifications
| Exterior | Hard | |
| Built In Wheels or Casters | No | |
| Front rail to back lid | 28.25 in | 71.75 cm |
| Rail to rail | 23.75 in | 60.32 cm |
| Rear rail to front lid | 28.25 in | 71.75 cm |
| Exterior length | 36 in | 91.44 cm |
| Exterior width | 26.75 in | 67.94 cm |
| Exterior height | 27 in | 68.58 cm |
| Carton length | 36.5 in | 92.71 cm |
| Carton width | 27.5 in | 69.85 cm |
| Carton height | 27.5 in | 69.85 cm |
| Rack units | 10 | |
| Top space units | 0 | |
| Bottom space units | 0 | |
| Product weight | 88.85 lb | 40.3 kg |
| Shipping weight | 95.12 lb | 43.15 kg |
Warranty
Lifetime Warranty
SKB-branded hardshell cases are fully warranted against defects in materials and craftsmanship for the life of the case to the original owner. That means if your case breaks, SKB will supply replacement parts, repair the case, or replace your case for as long as you own it. Proof of Purchase is required for all warranty claims. SKB is not responsible for the shipping cost to our facility. However, SKB will cover all of the costs of repairs and/or replacements, as well as the return shipping. To request a return authorization for a warranty claim or field replaceable parts, please contact our customer service department through our online Support Request form. SKB-branded hardshell cases are warranted for life to the original owner only. Cases that have been modified, previously owned, or used for rental purposes by institutions or schools are not covered by this warranty.
Downloads
Here you can access relevant product downloads like dimensional drawings, series information, and more.
Prop 65
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
