4U 28-inch Deep rSeries Shock Rack

4U 28-inch Deep rSeries Shock Rack

Model: 3SKB-R904U28

Series: rSeries Shock Rack

1 Colors
Only left
Preorder Today
Coming Soon!
Call to order!
We're sorry, but this item is unavailable.
Free -Day Shipping
Get it by when you order within
Get it if you order in Price:
FOR BULK ORDERS View full details
  • Overview
  • Specs & Features
  • Warranty
  • Downloads
  • Prop 65

Overview

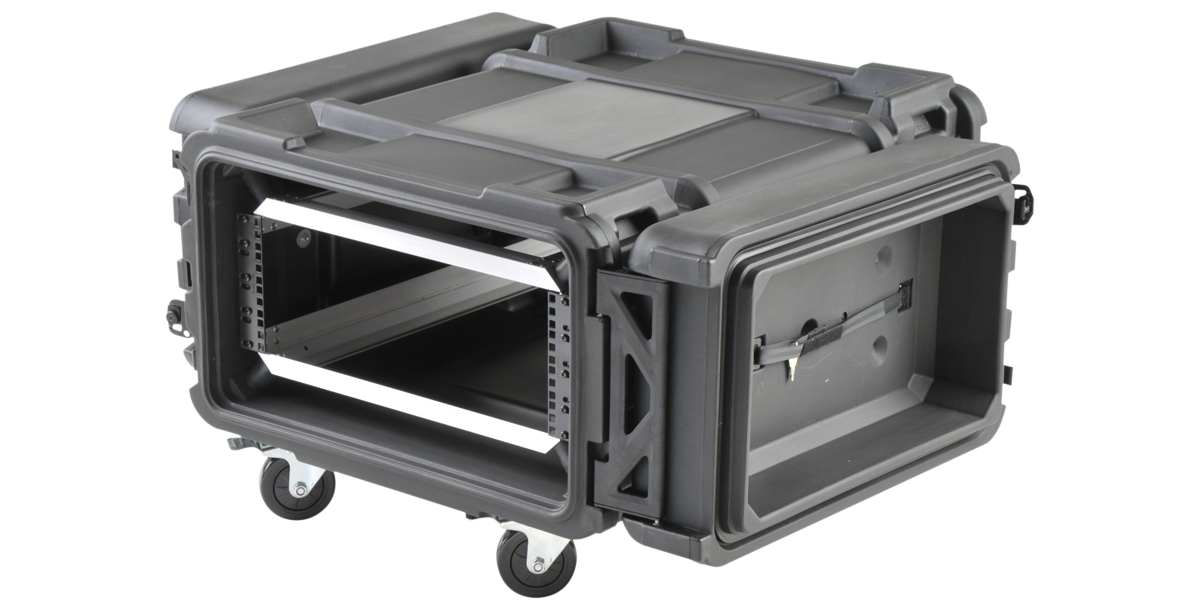

28" Roto Shock Racks feature a depth of 29.5" from front to rear rail, with lid depths of 4.5" per lid to accommodate deeper servers. They also include a revolutionary new patented Adjustable Rail Conversion System (ARCS).

This ARCS technology allows the user to adjust the rack width up to 0.5 inches on each side. Optional easy-mount adapter rails will convert the equipment mounting standard from 3/16" threaded to 7/32" through holes or square cage nut windows. The 7/32" through hole option and the 3/16" threaded are special order items. 28" 3SKB Roto Shock Racks will accommodate Dell and Compaq servers utilizing "Versa-rail" or "Rapid-rail" pull-out systems.

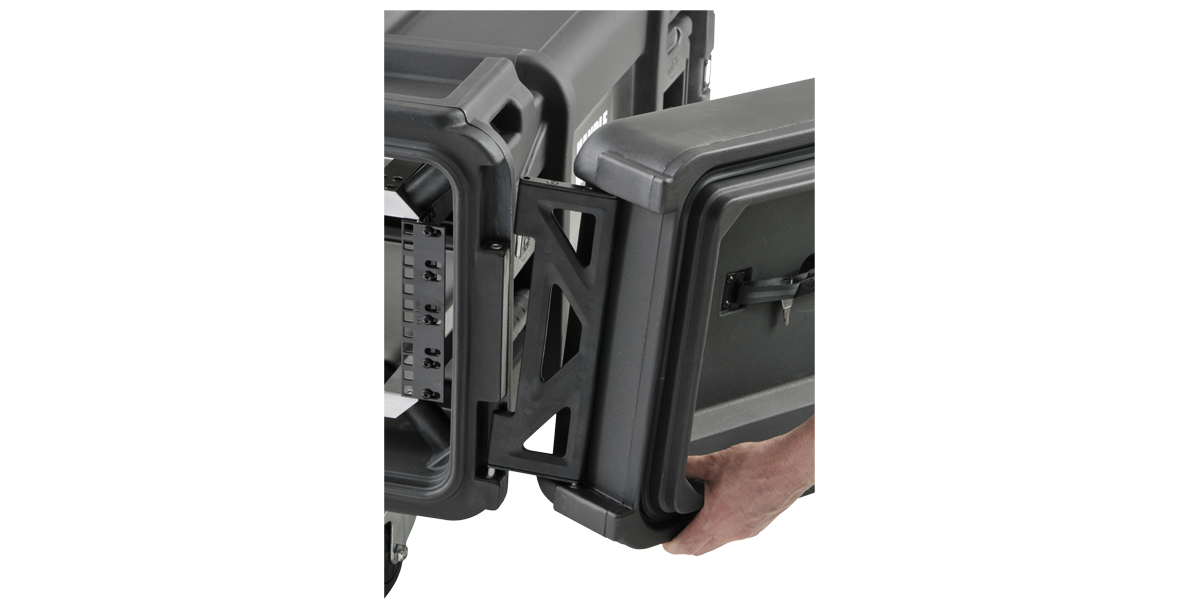

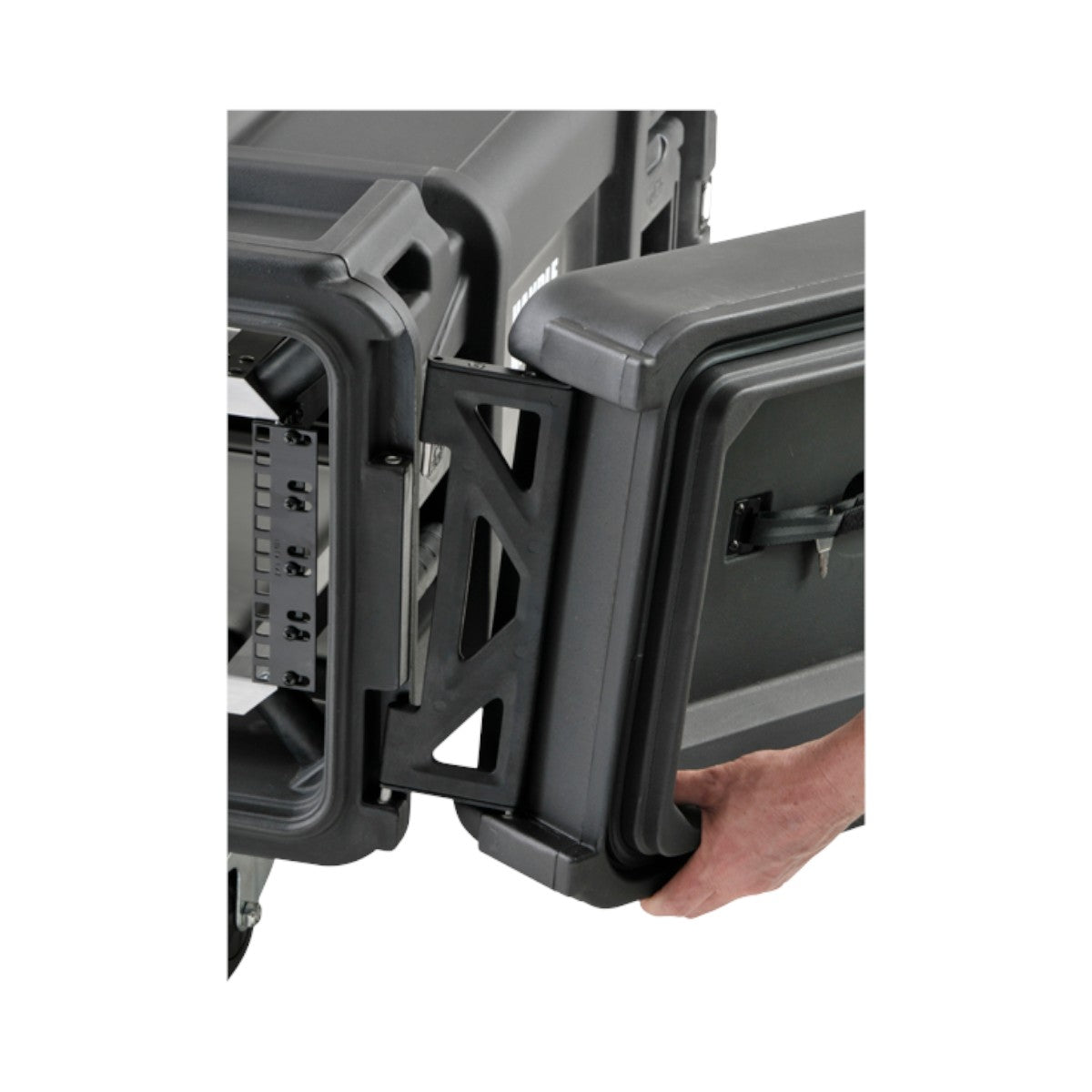

All 3SKB Series Roto Shock Racks feature a compound hinge system that allows the lid to swing out and completely around to lie flat against the main body of the case. This also enables effortless removal/reinstallation of the lid with a simple lift motion.

Both front and rear lids are designed to protrude into the base of the case approximately 1" with a unique double wall structure that makes them incredibly rigid where this intersection occurs, providing MIL-SPEC sealing characteristics with significantly fewer latches than most competitive cases. This revolutionary design allows for rapid deployment in an up-right configuration, even when stacked -- 3SKB Roto Shock Racks are the only shock racks in the marketplace today that will open front and back while stacked.

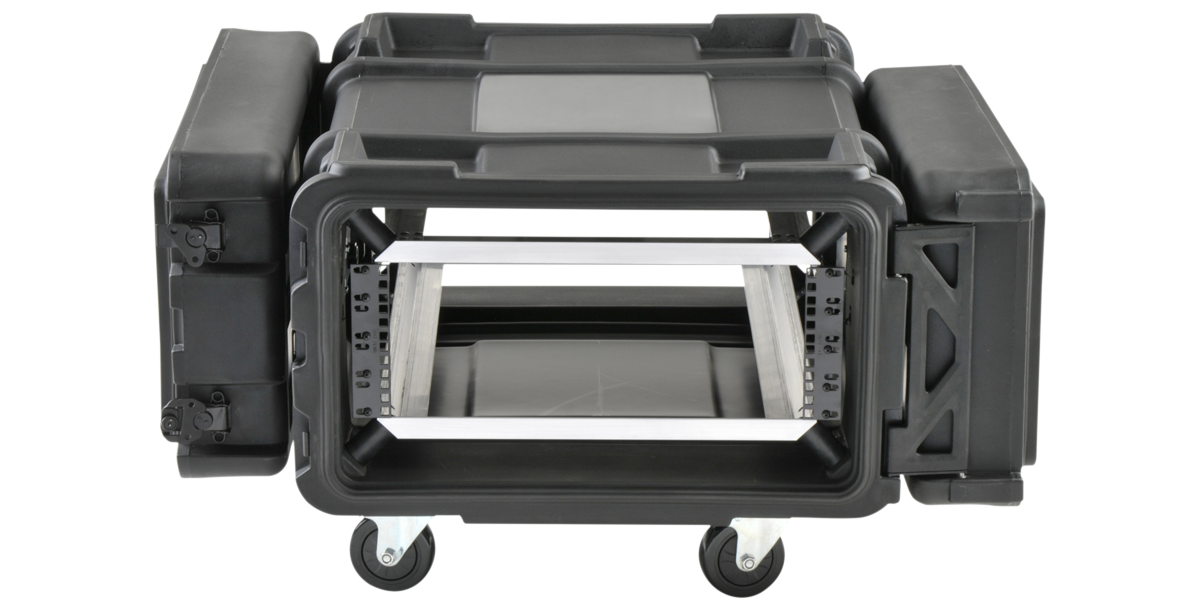

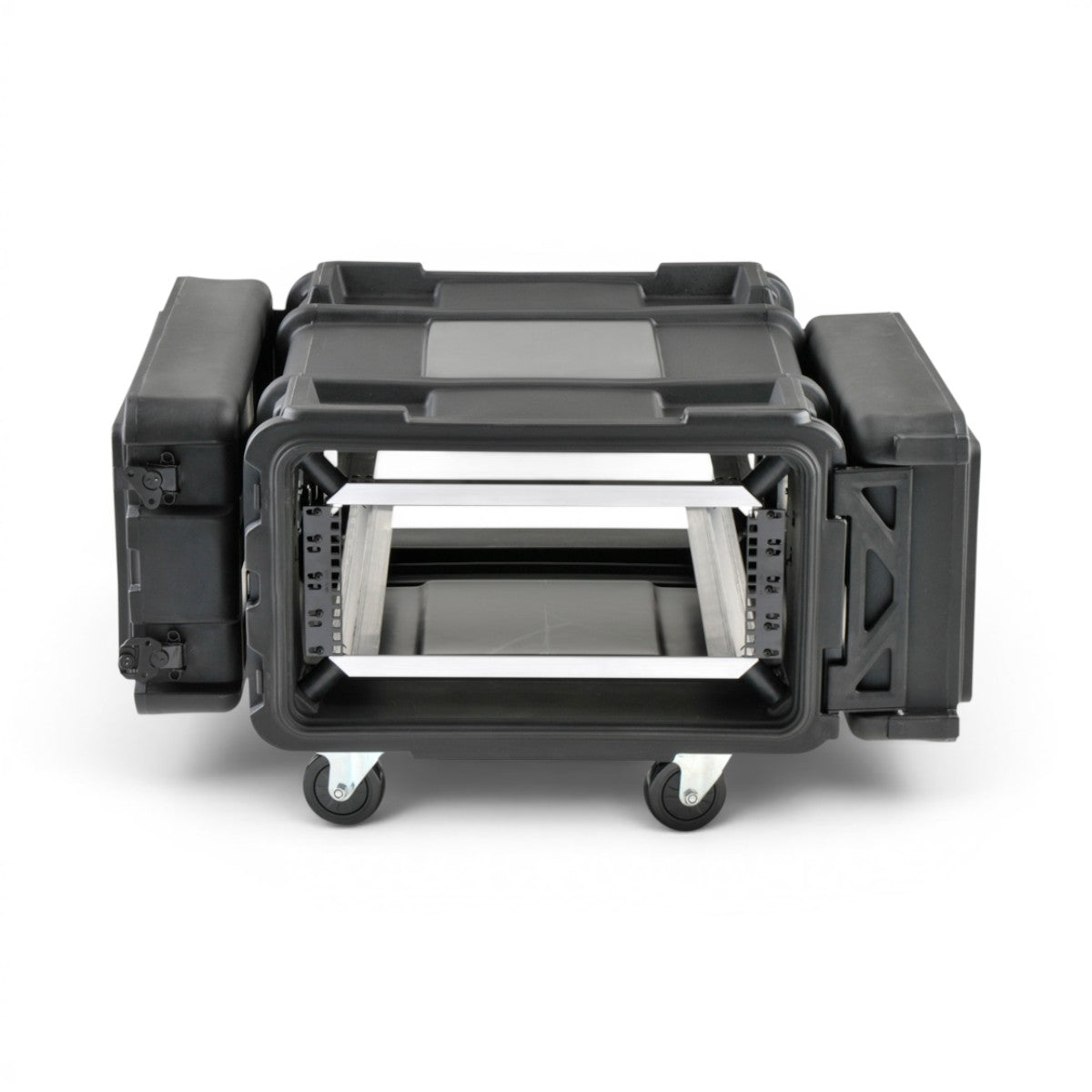

The inner rack chassis is built of high strength / lightweight aluminum alloy and 11 gauge hot rolled carbon steel rack rails to EIA-310 standards, creating an H-shaped frame that provides maximum strength. Shock and vibration mitigation is accomplished with eight (8) elastomeric isolators rated for a payload range of 40 - 150 pounds in a standard configuration, and up to 300 pounds in a special order extended payload configuration allowing adequate sway space for ambient air circulation and heat dissipation. The rack rails come pre threaded for standard 10-32 hardware and mounting screws are included.

Other standard features include an automatic ambient pressure relief valve and removable 4" casters.

Features

  • Includes Adjustable Rail Conversion System (ARCS)
  • Patented compound hinged doors
  • Threaded steel rails
  • Rear rails
  • Casters
  • Shock and water resistant
  • Gasketed doors
  • Pressure relief valve
  • Field replaceable latches
  • Removable 4.5" casters
  • Stacks securely with the wheels on or off
  • Recessed latches
  • Adjustable elastomer shock absorbers
  • Provisions to add additional shocks
  • Rotomolded for strength

Specifications

Exterior Hard
Built In Wheels or CastersNo
Rack Units 4
Top Space Units 0
Bottom Space Units 0
Front Rail to Back Lid 34 in 86.36 cm
Rail to Rail 29 in 73.66 cm
Rear Rail to Front Lid 34.125 in 86.67 cm
Product Weight 73.95 lb 33.54 kg
Exterior Length 42 in 106.68 cm
Exterior Width 26.75 in 67.94 cm
Exterior Height 16.375 in 41.59 cm
Carton Length 43 in 109.22 cm
Carton Width 27 in 68.58 cm
Carton Height 17.5 in 44.45 cm
Shipping Weight 79 lb 35.83 kg

Warranty

Lifetime Warranty

SKB-branded hardshell cases are fully warranted against defects in materials and craftsmanship for the life of the case to the original owner. That means if your case breaks, SKB will supply replacement parts, repair the case, or replace your case for as long as you own it. Proof of Purchase is required for all warranty claims. SKB is not responsible for the shipping cost to our facility. However, SKB will cover all of the costs of repairs and/or replacements, as well as the return shipping. To request a return authorization for a warranty claim or field replaceable parts, please contact our customer service department through our online Support Request form. SKB-branded hardshell cases are warranted for life to the original owner only. Cases that have been modified, previously owned, or used for rental purposes by institutions or schools are not covered by this warranty.
